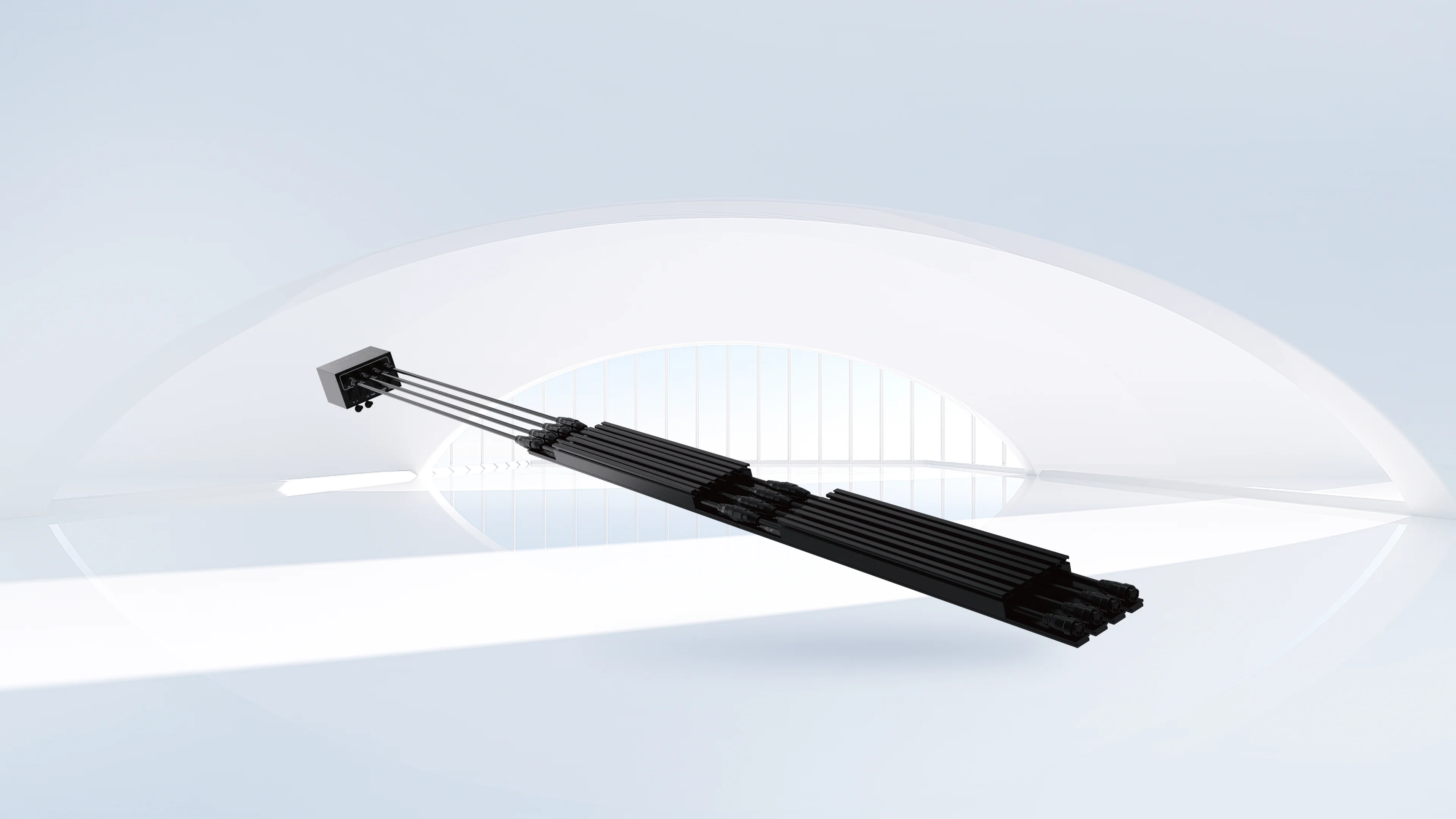

JavelinSeries
Linear LED Bar Display System for Creative Rental & DOOH
-
Easy Setup -
Flexible Linear Layouts -
Custom Forms -
Outdoor Ready
Flexible Linear Display for Creative Applications
Javelin brings content and structure together in a lighter, more open LED format.

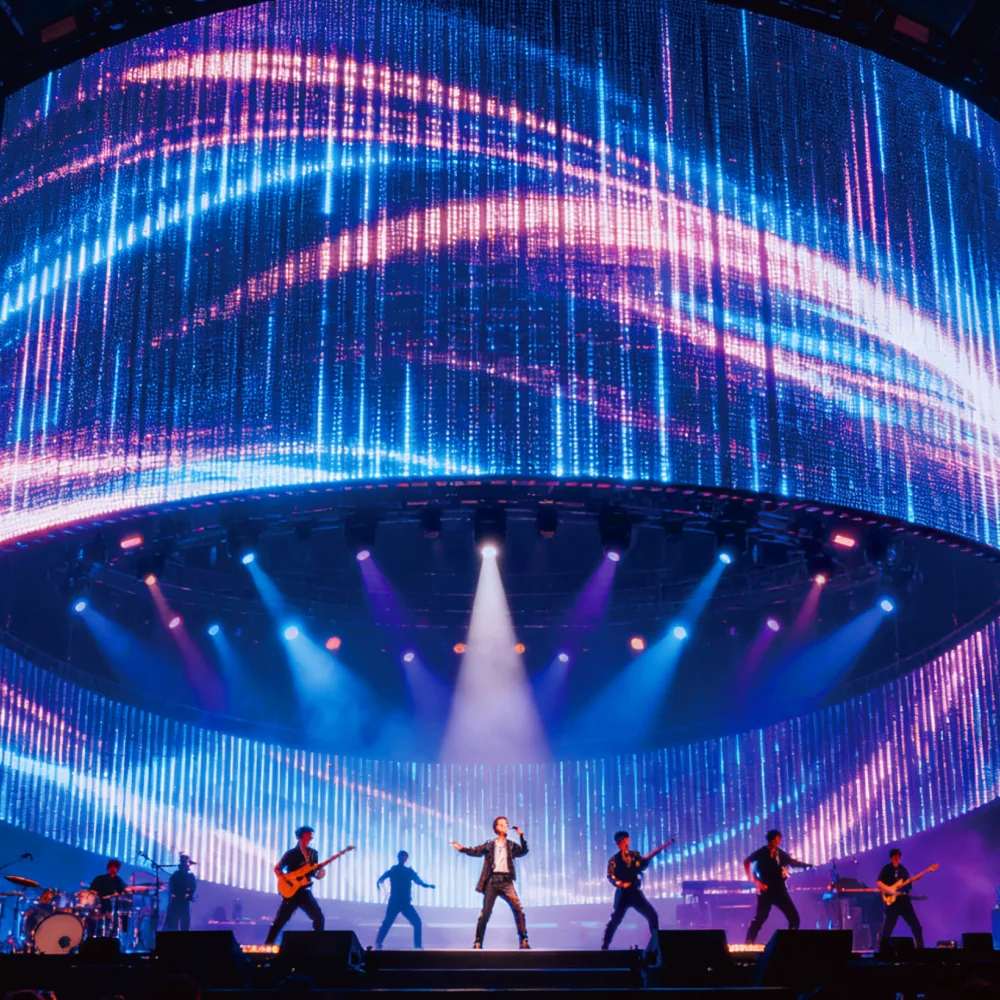

Stage & Live Shows
Linear LED structures for creative stage backdrops and performance visuals.
Exhibitions
Flexible visual layouts for booths, immersive spaces and creative exhibition design.
Retail
High-brightness content display for retail spaces, brand activations and commercial media.

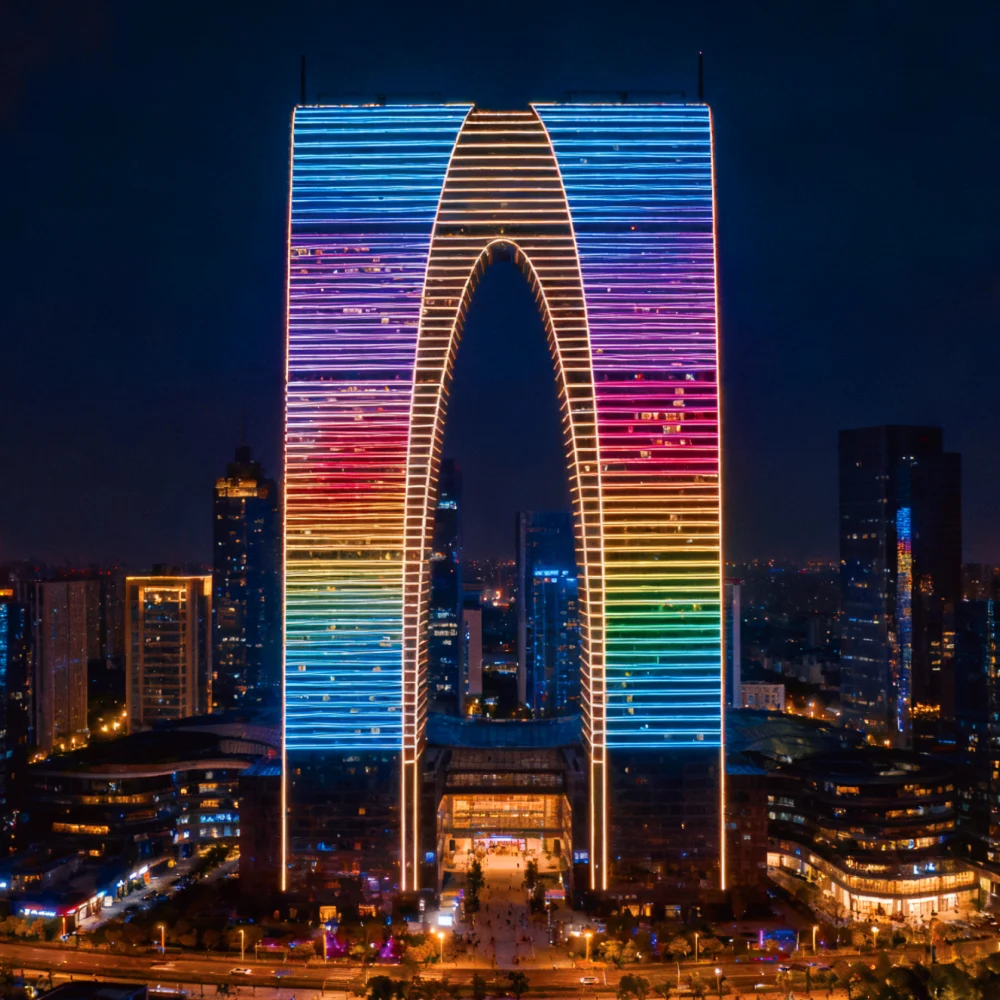

Façades
Lightweight linear displays for building façades, curtain walls and urban media surfaces.
Corporate
Custom visual structures for showrooms, corporate spaces and brand presentation areas.
Creative
Irregular linear forms for public art, spatial design and creative installations.
Stage & Live Shows
Linear LED structures for creative stage backdrops and performance visuals.

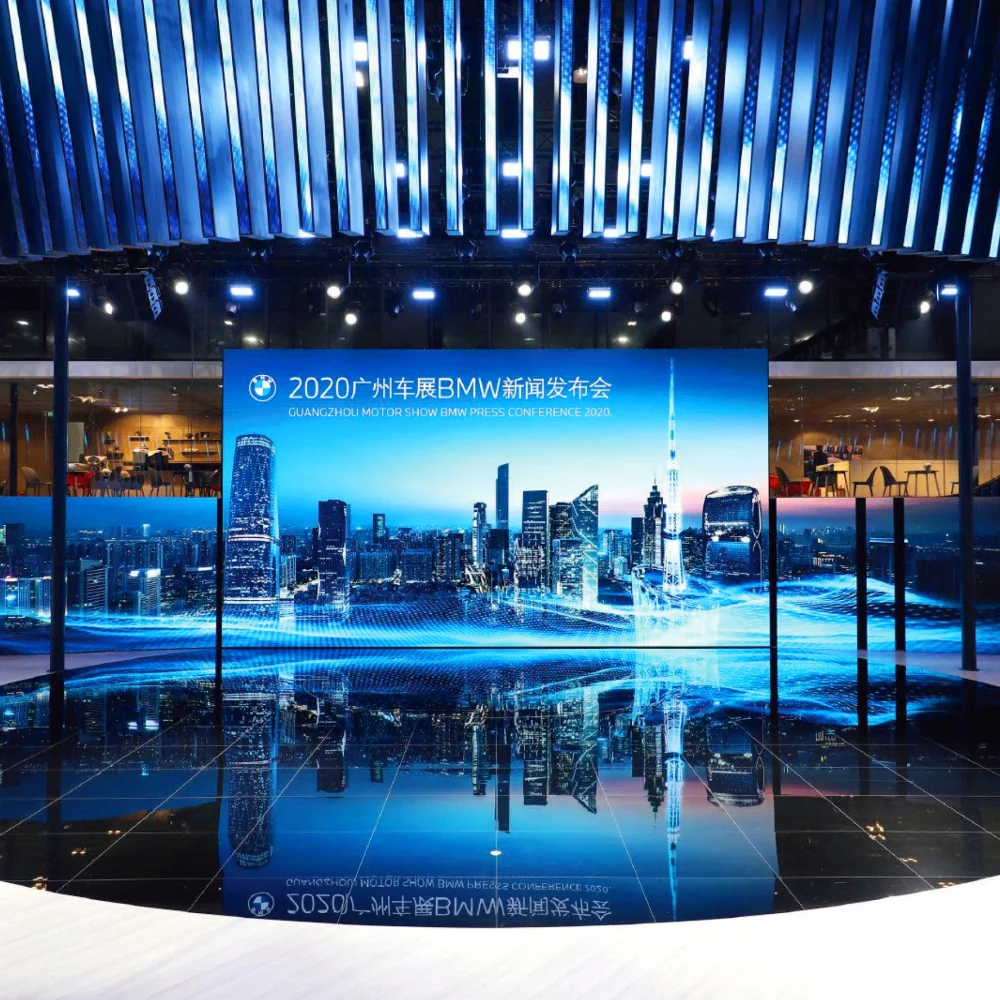

Exhibitions
Flexible visual layouts for booths, immersive spaces and creative exhibition design.

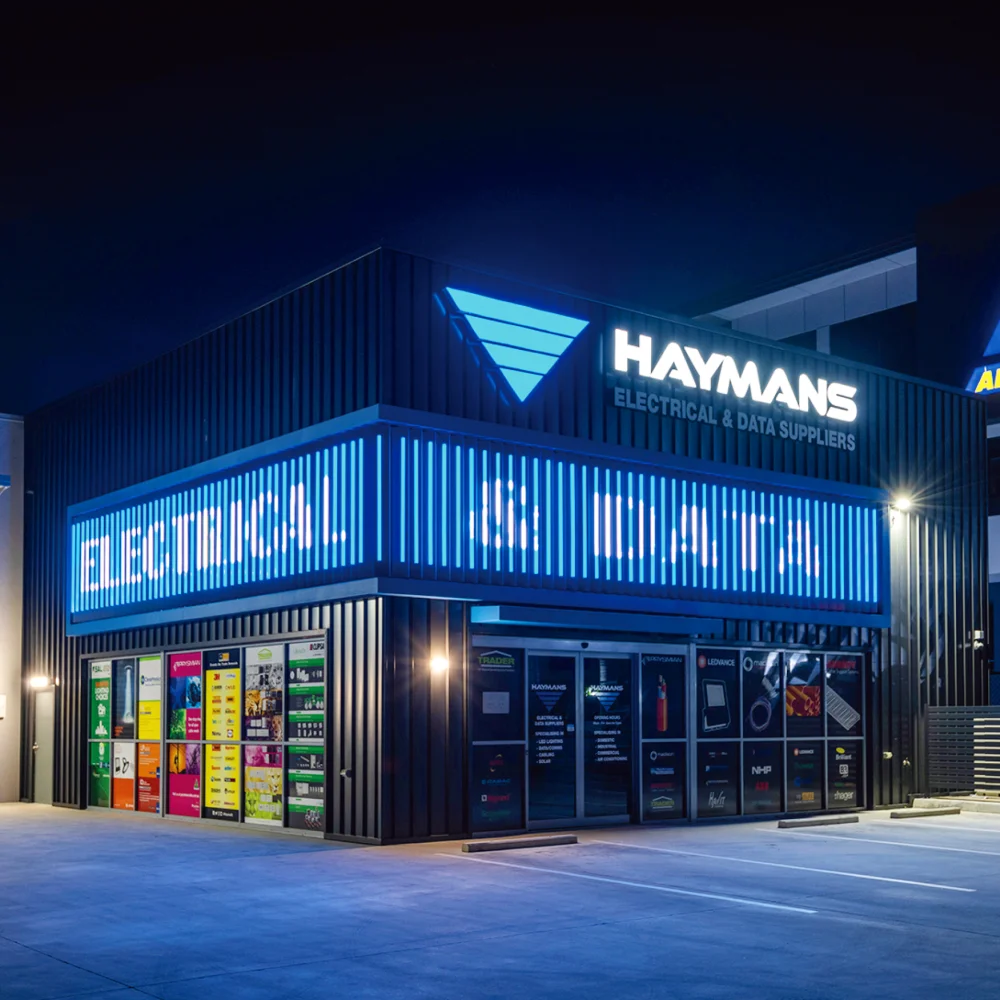

Retail
High-brightness content display for retail spaces, brand activations and commercial media.
Façades
Lightweight linear displays for building façades, curtain walls and urban media surfaces.

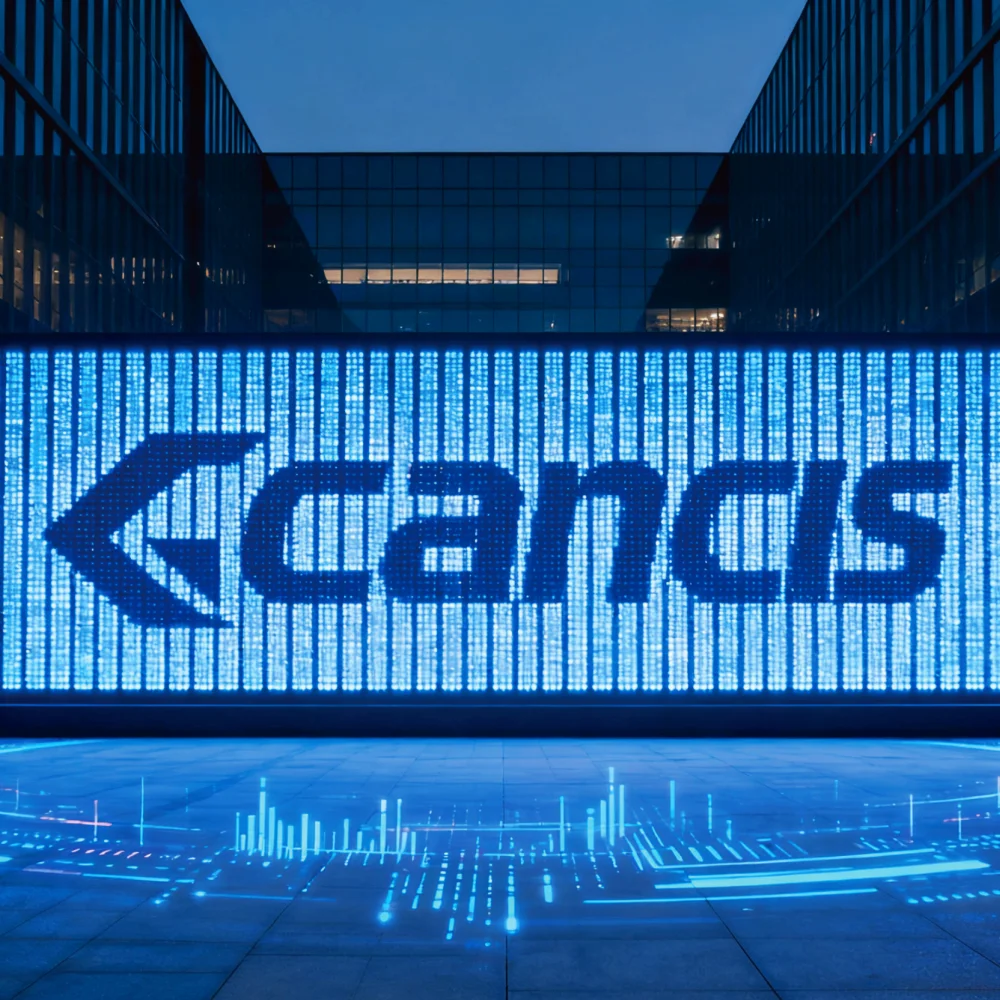

Corporate
Custom visual structures for showrooms, corporate spaces and brand presentation areas.

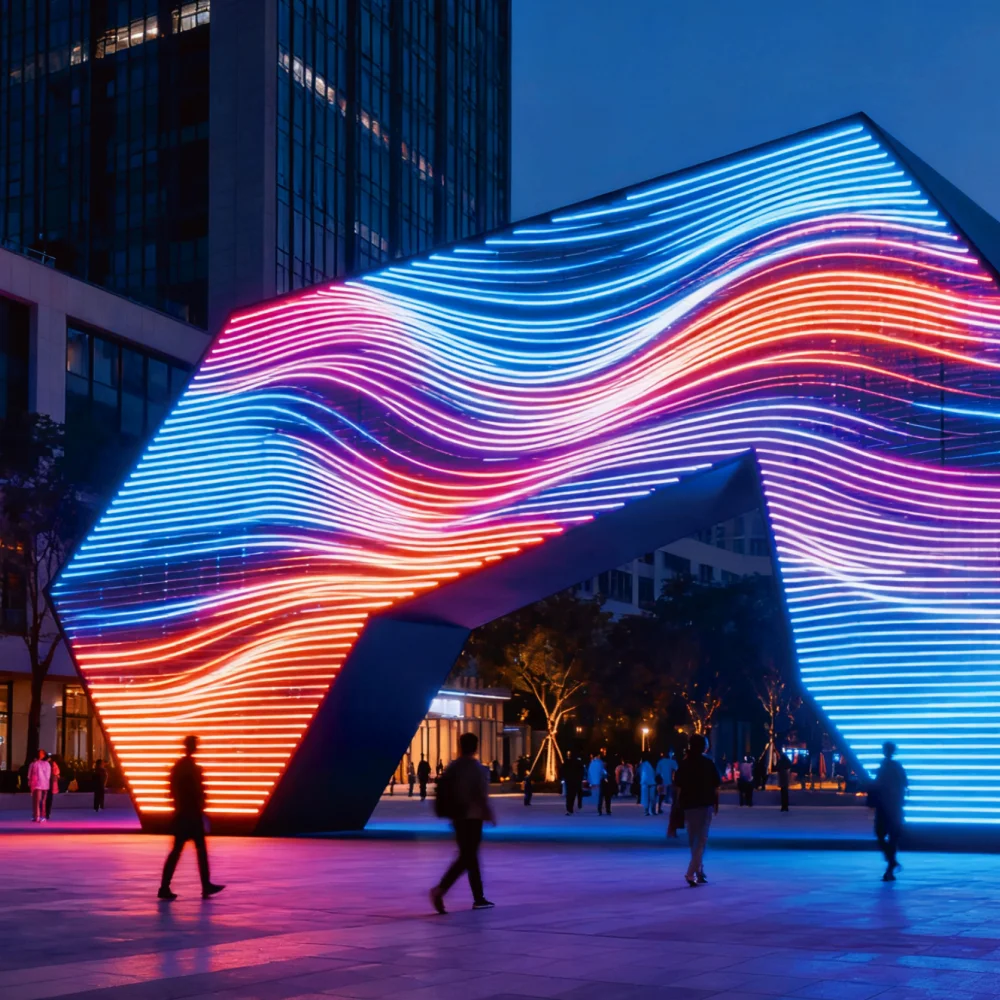

Creative
Irregular linear forms for public art, spatial design and creative installations.
Minimal Structure, Scalable Connections
Javelin uses serial and parallel connections to simplify large-scale linear layouts while keeping cabling cleaner and easier to manage.
-
Serial LinkingCertified cables support connection distances up to 30 m between controller-to-bar or bar-to-bar connections.
-
Parallel GroupingEach data group supports 14–26 bars, while one PDU can manage 4 groups, 56 bars in total.
-
Hybrid LayoutsSerial and parallel connections can be combined to build lines, planes and custom visual compositions.

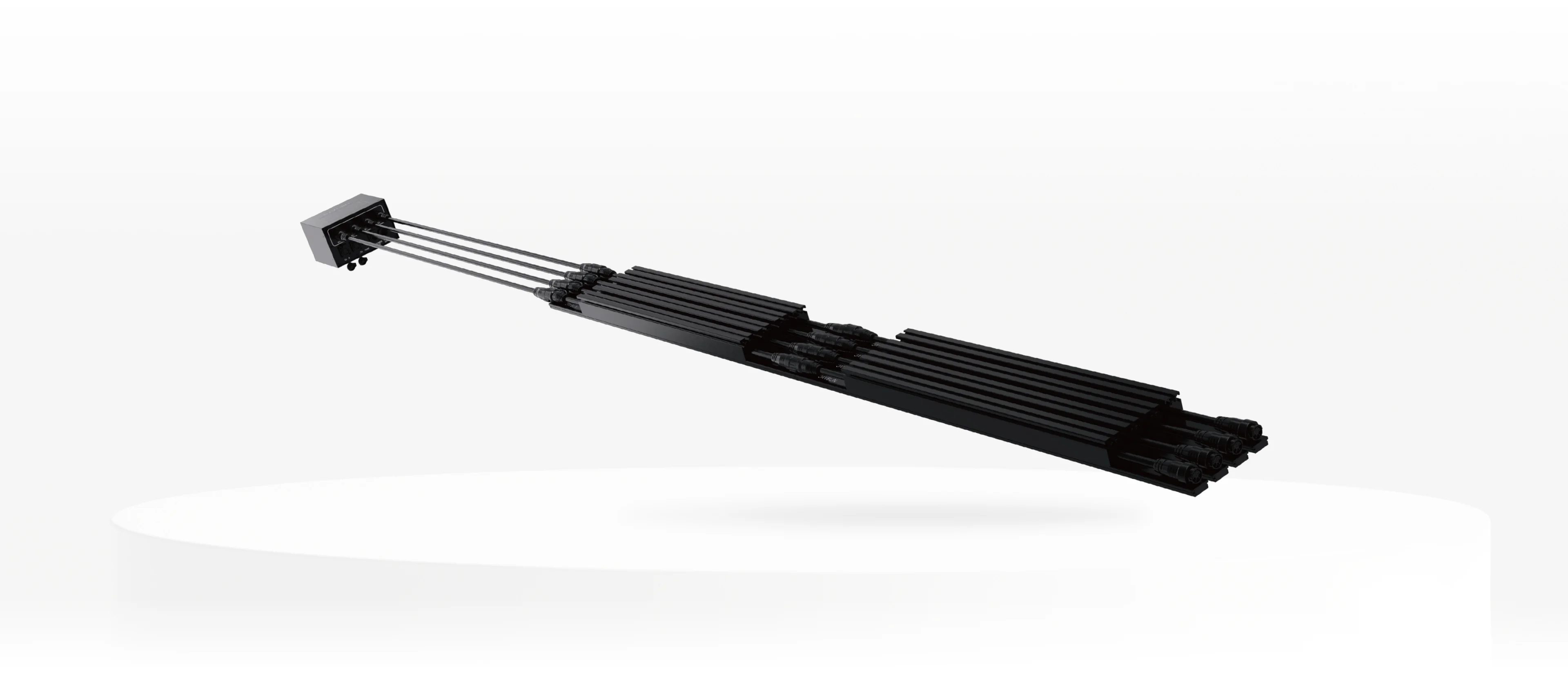

High-Brightness Visual Performance
Javelin delivers clear, smooth visuals for indoor and outdoor creative applications.
-
3,840 Hz Refresh RateSupports smooth motion and stable image playback. -
6,000 Nits BrightnessKeeps content visible under bright stage lighting and outdoor conditions. -
14-Bit GrayscalePresents smoother color transitions and refined image detail. -

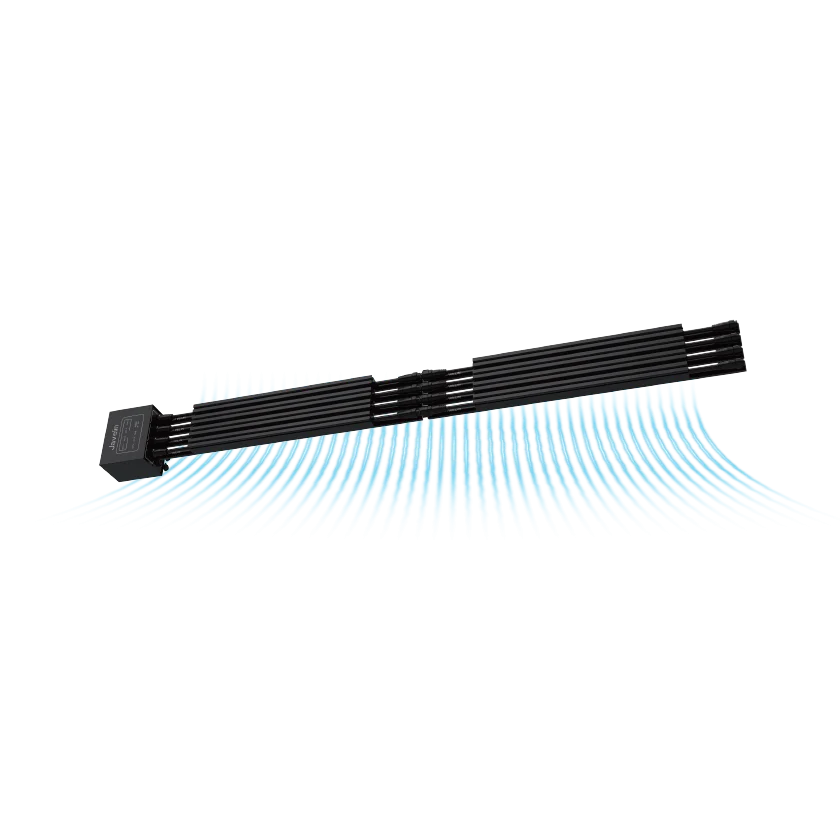

Passive CoolingThe open-sided bar structure allows air to circulate around the display, supporting heat dissipation without additional cooling equipment.
Lightweight Bar Design
Each Javelin bar weighs approximately 1.5 kg, making transport, handling and installation easier while helping reduce structural load in large creative builds.
Wide Operating Temperature
Operates from -20°C to +50°C, supporting use across varied climates and site conditions.

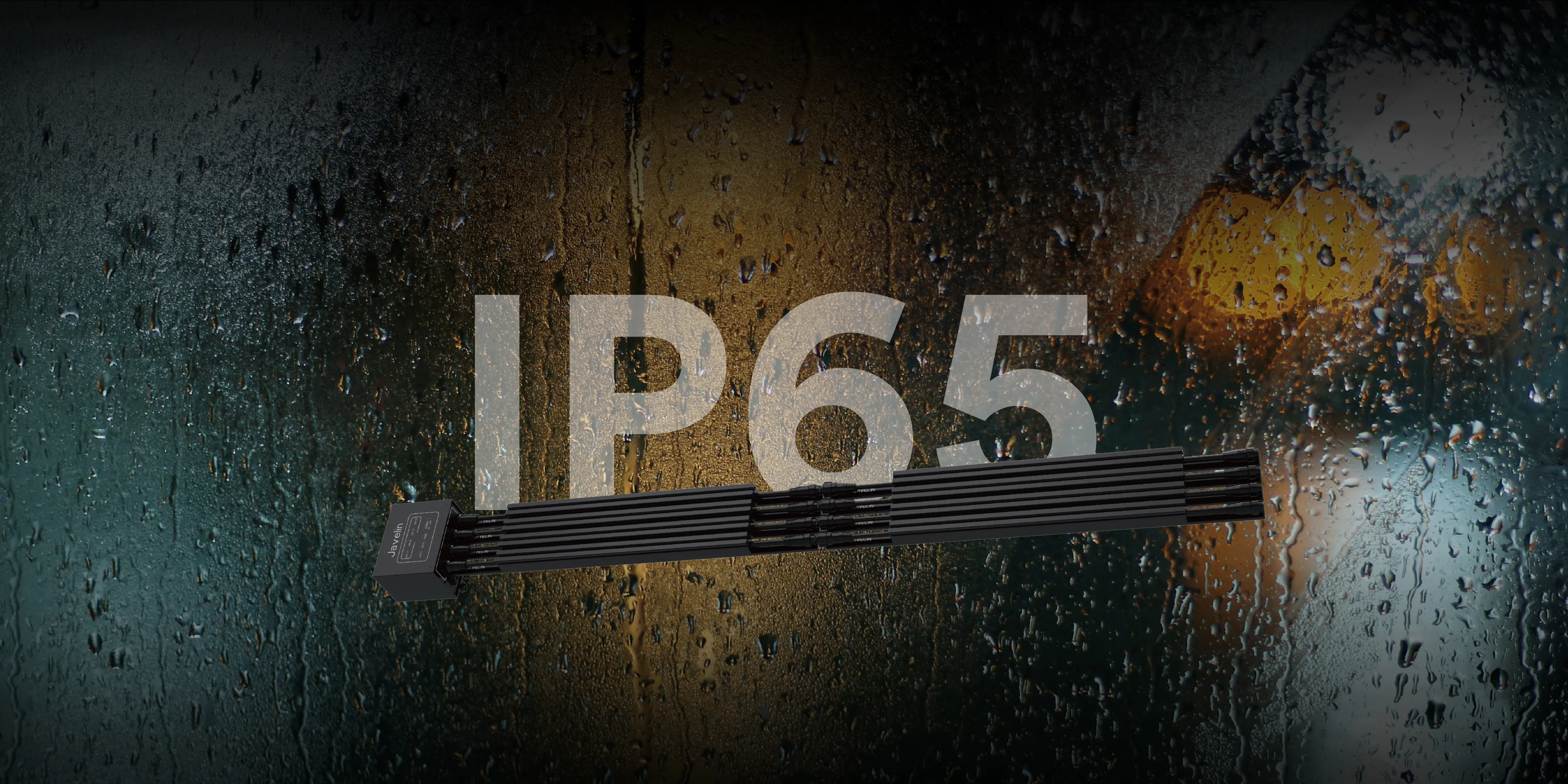

IP65 Protection
Rated IP65 to help resist dust and water in outdoor rental, façade and public-space installations.
Simple Installation and Service
Javelin is designed for fast assembly, easier service and lower operating demand across rental, touring and architectural projects.

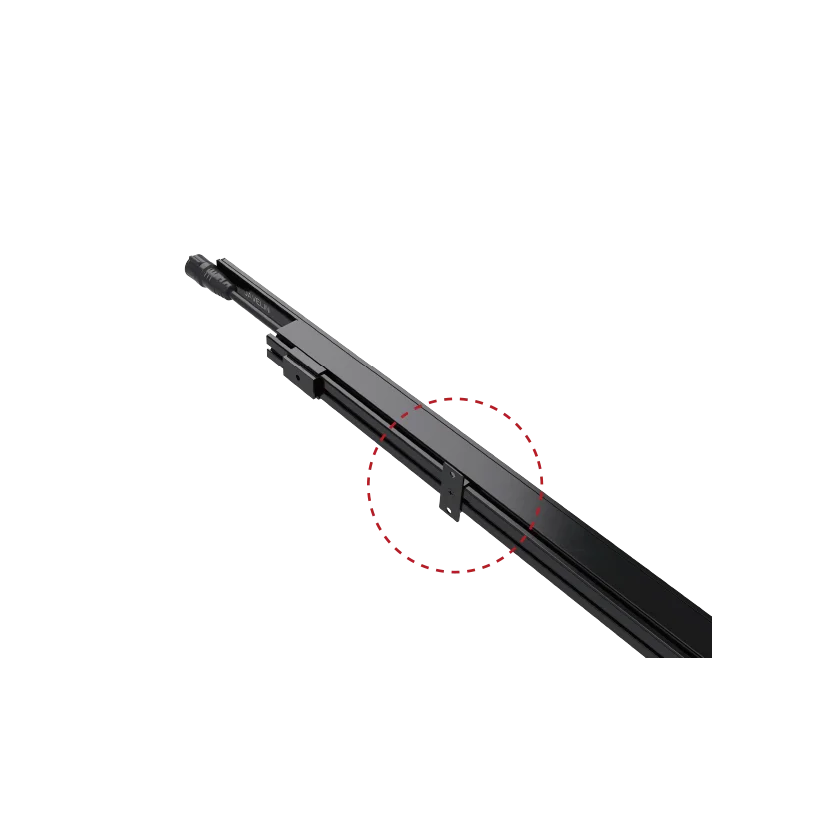

Quick Assembly
Simple interfaces support fast bar connection and help reduce reliance on heavy secondary framing.

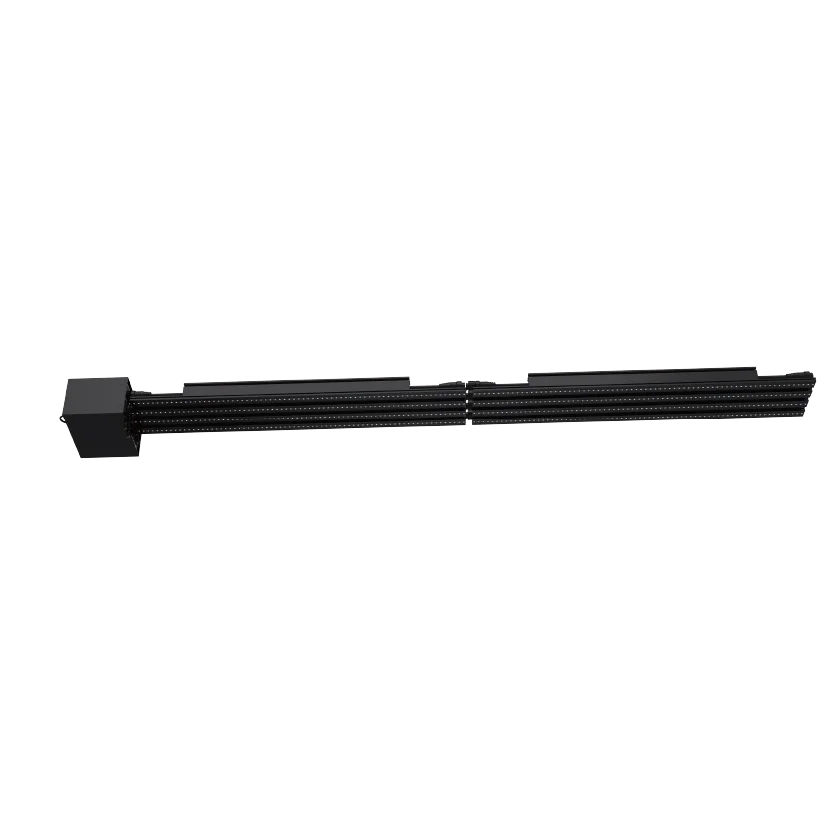

Front Maintenance
Front access supports single-LED repair for pixel faults or quick full-bar replacement for internal faults.
Efficient Power Use
Typical power consumption is 13 W per bar, with 40 W maximum power per bar and 4.3 W per PDU.

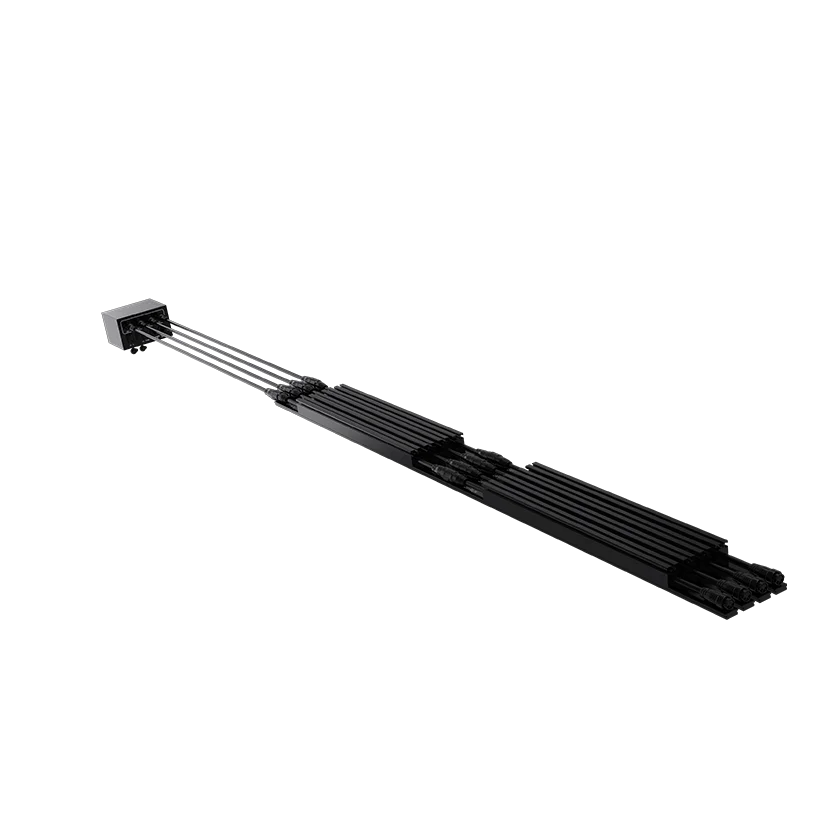

Flexible Form Building
Integrated connections allow Javelin to build continuous lines, larger surfaces and custom-shaped layouts, giving designers more freedom to shape content around the space.
Quick Assembly
Simple interfaces support fast bar connection and help reduce reliance on heavy secondary framing.
Front Maintenance
Front access supports single-LED repair for pixel faults or quick full-bar replacement for internal faults.
Efficient Power Use
Typical power consumption is 13 W per bar, with 40 W maximum power per bar and 4.3 W per PDU.
Flexible Form Building
Integrated connections allow Javelin to build continuous lines, larger surfaces and custom-shaped layouts, giving designers more freedom to shape content around the space.
