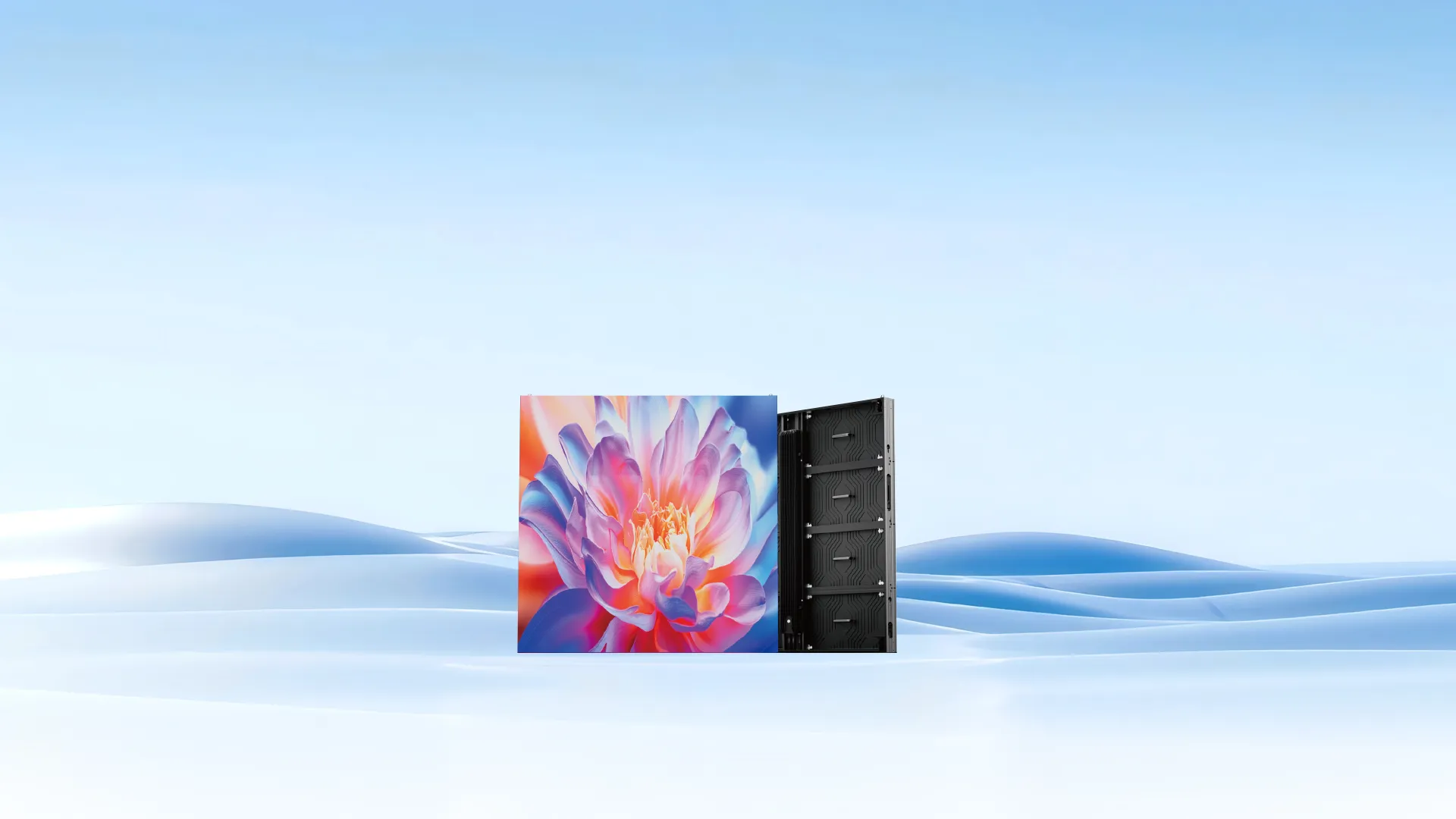

MVmk2Series
High-Brightness Fixed LED Display for Outdoor Applications
-
7,000–10,000 Nits Brightness -
7,680 Hz Refresh Rate -
16-Bit Grayscale

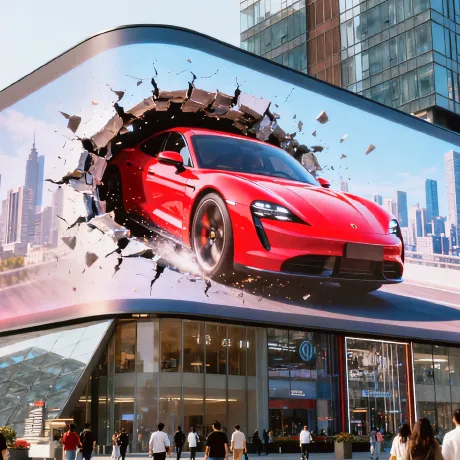

Built for Landmark Media Applications
From commercial façades to transit hubs and 3D landmarks, MVmk2 keeps content bright, smooth and visually integrated with the site.

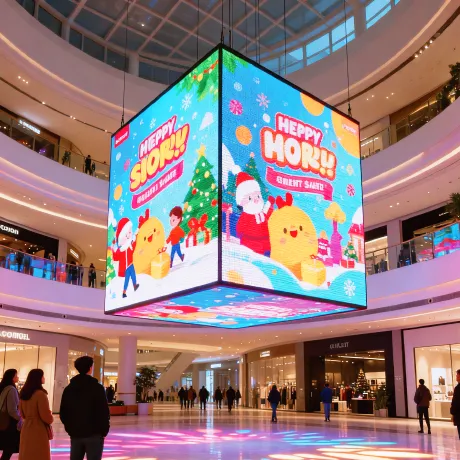

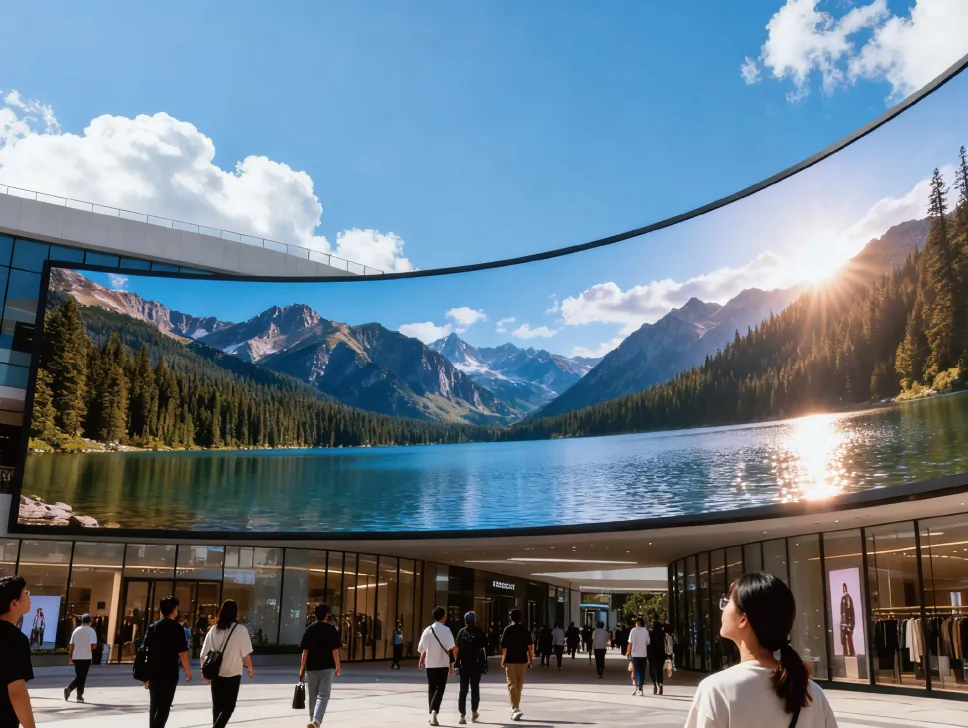

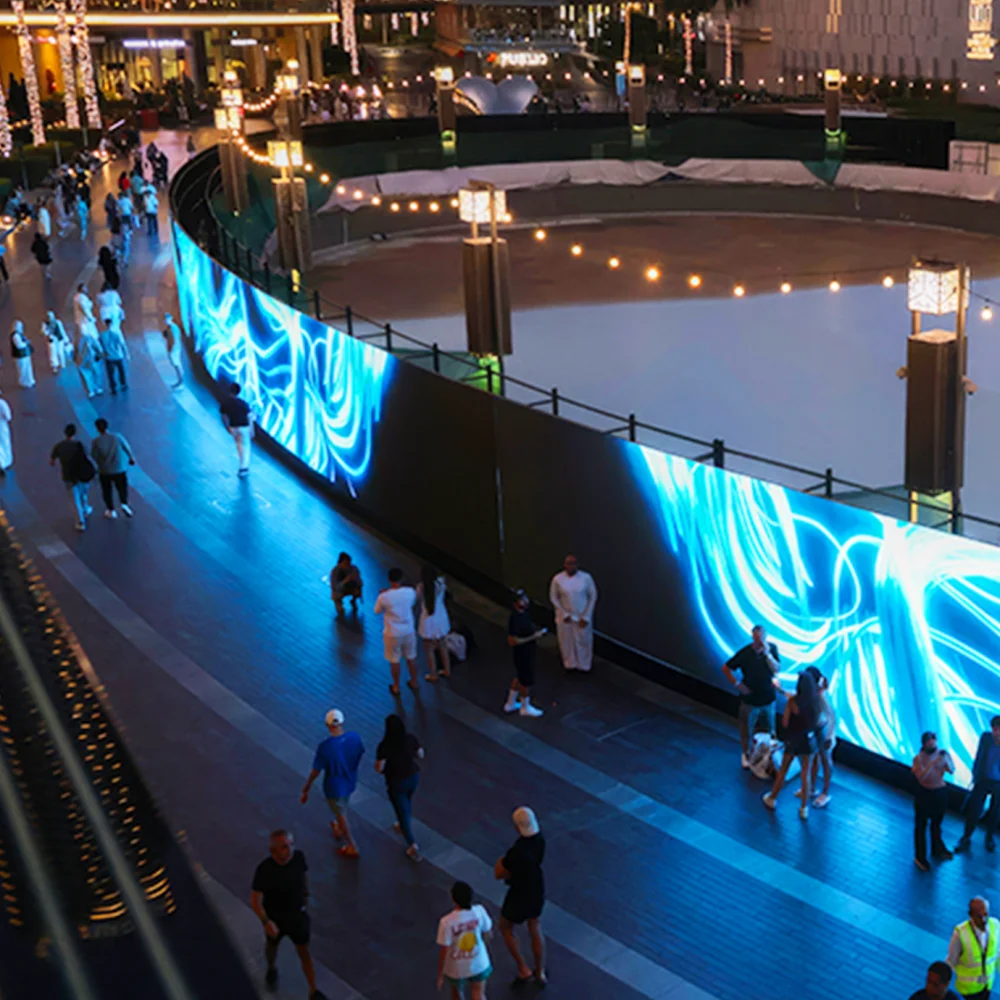

Commercial Centers
Large-format outdoor screens for retail districts and shopping destinations.

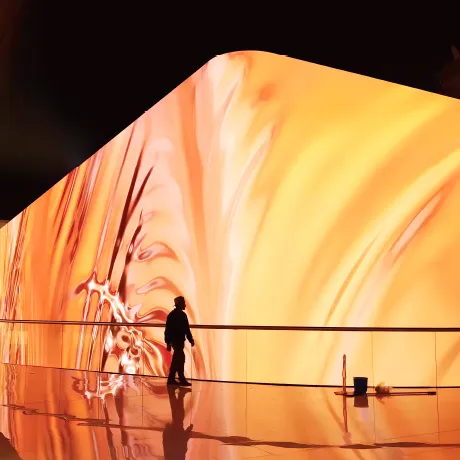

Cultural Venues
Accurate, immersive visuals for exhibitions and experience-led venues.

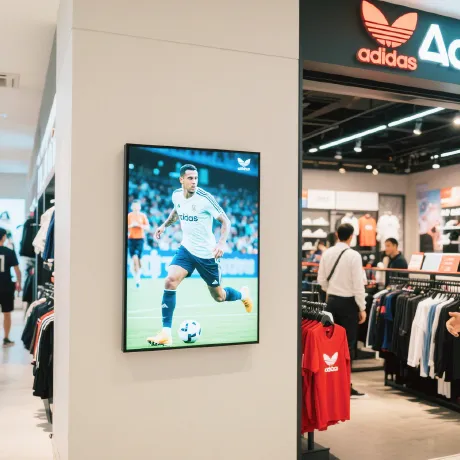

Flagship Stores
High-resolution brand content for premium retail façades.

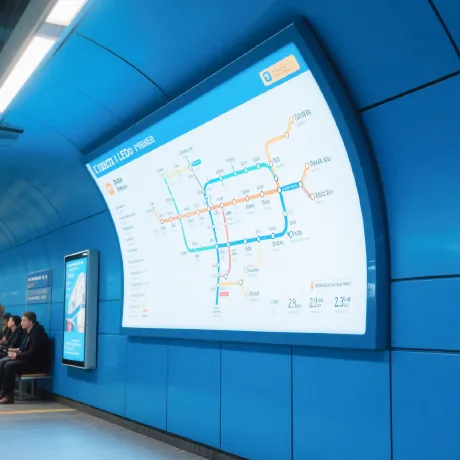

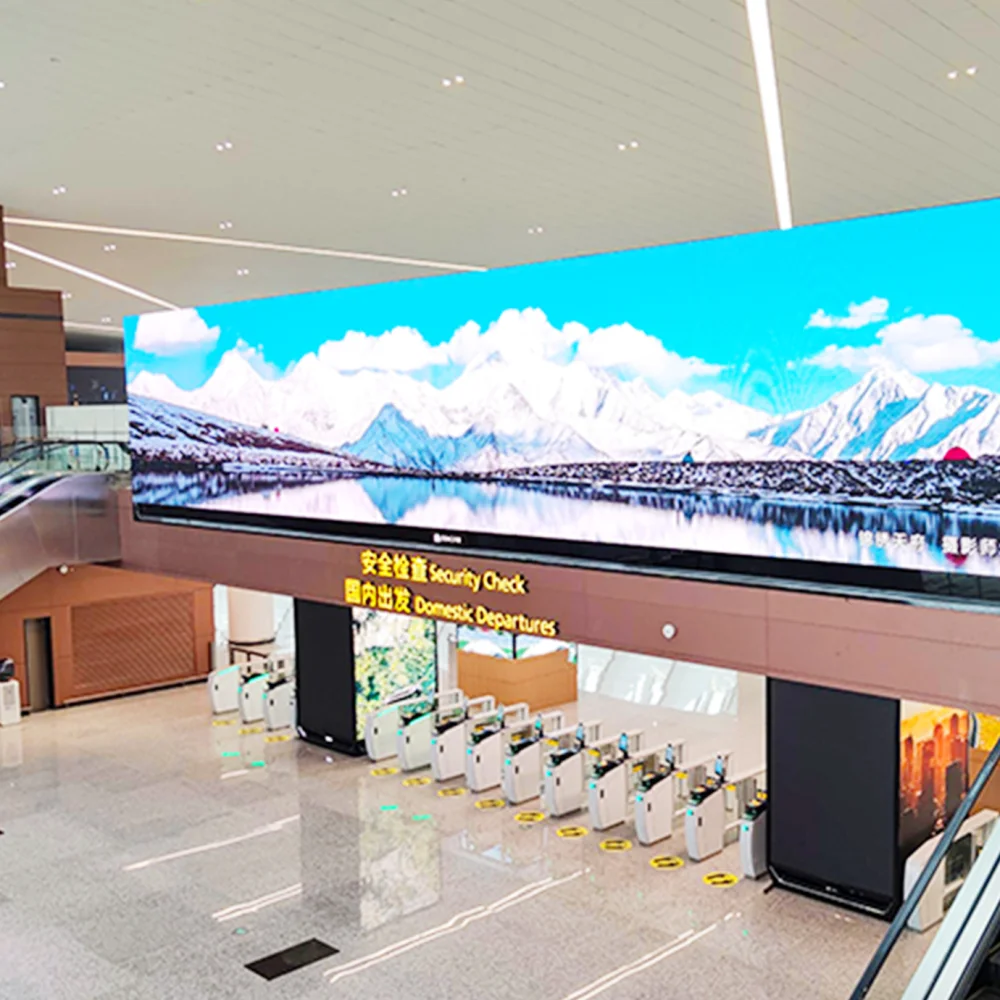

Public Information Displays
Clear updates and announcements for high-traffic business and travel areas.

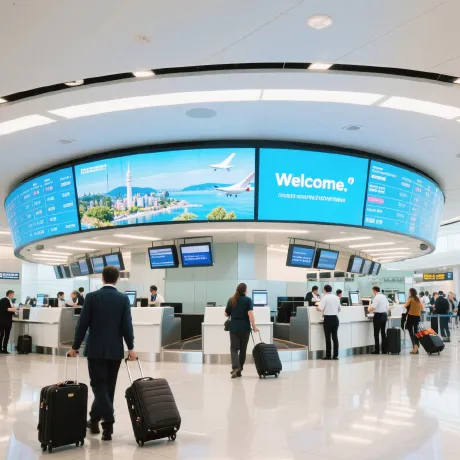

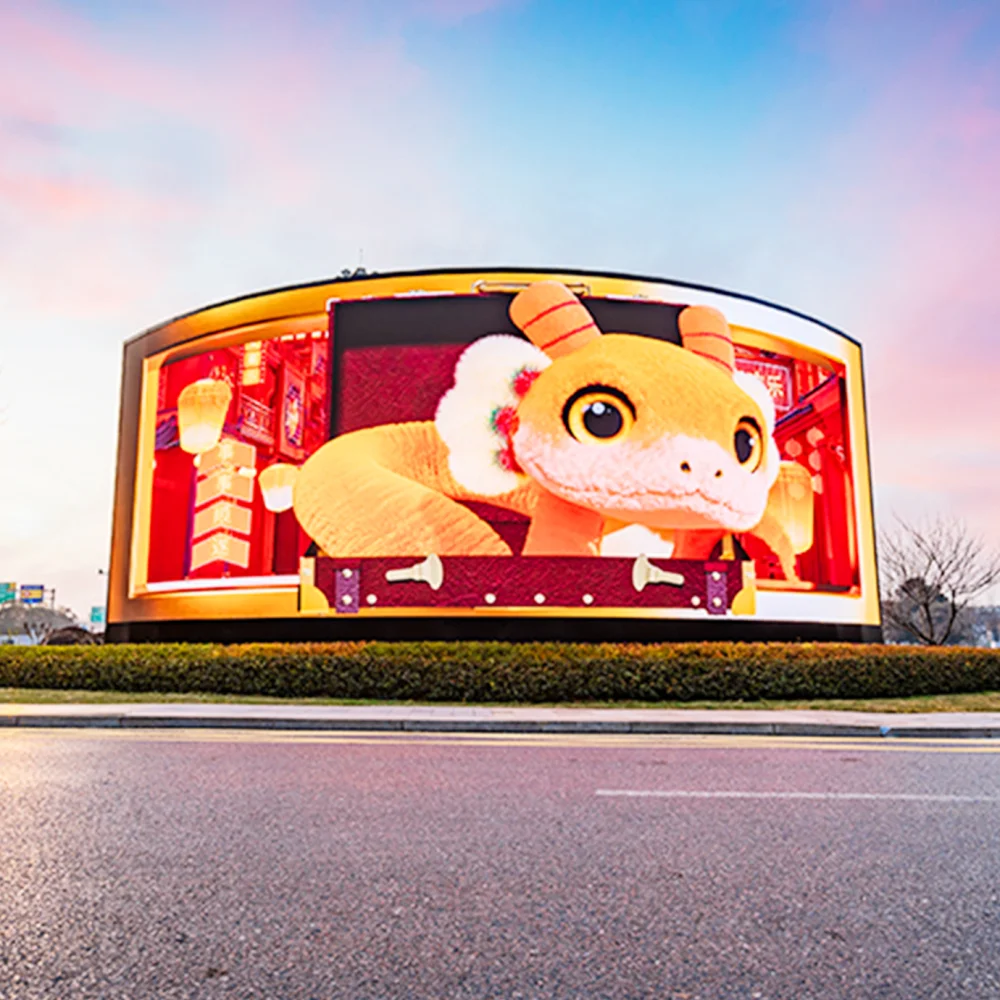

Airport
High-brightness media placements for passenger-facing airport environments.

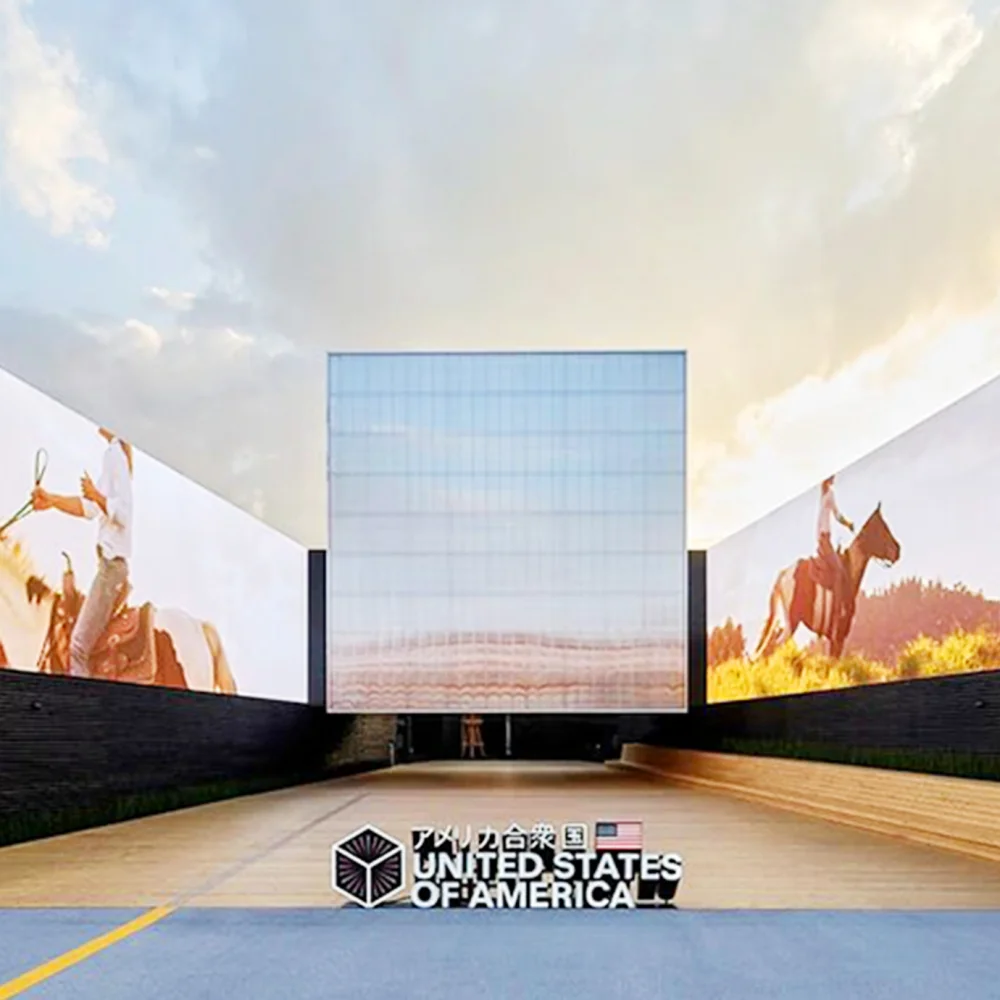

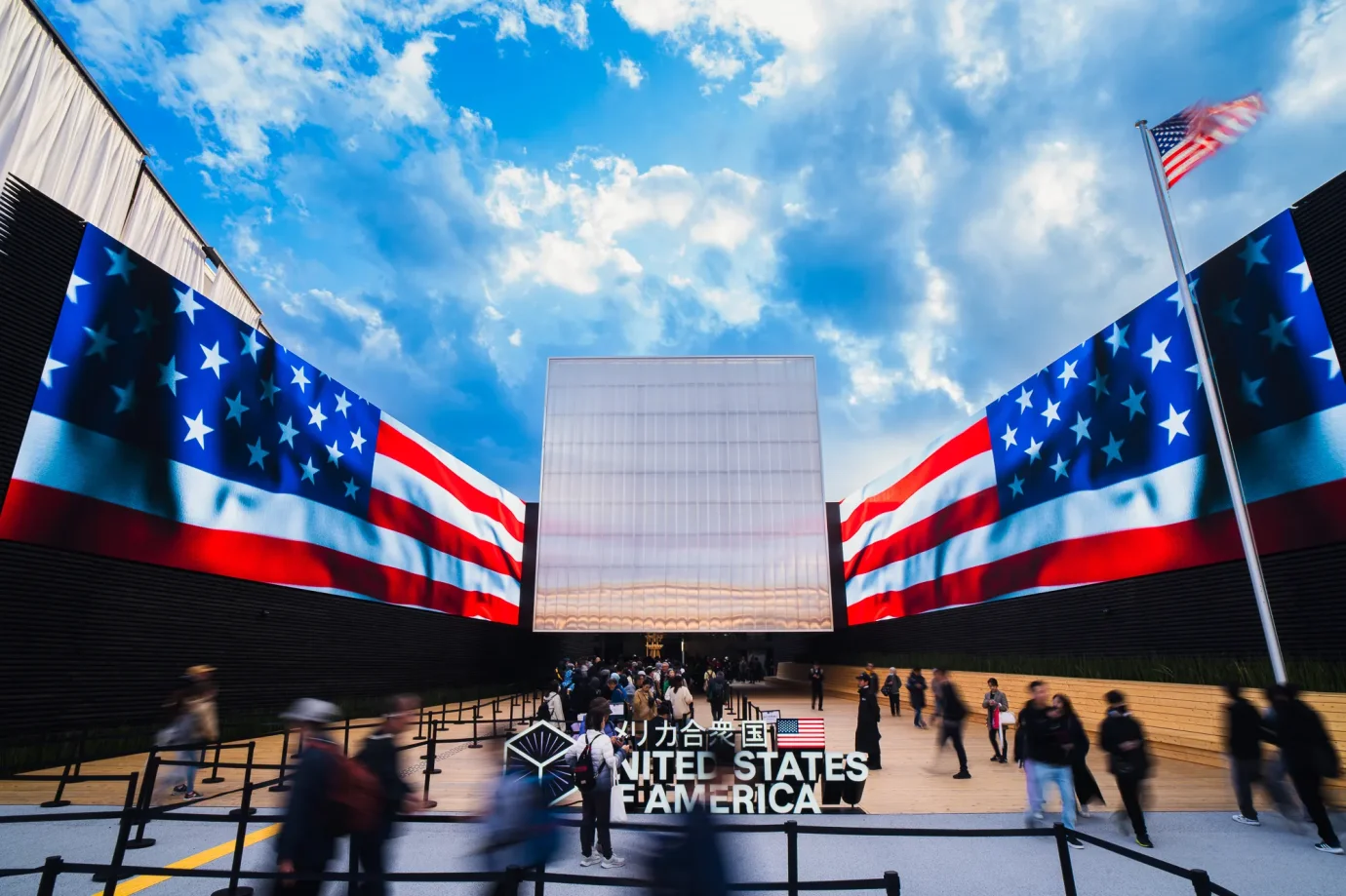

Expo & Public Art
Large-scale display surfaces for events, public art and landmark projects.

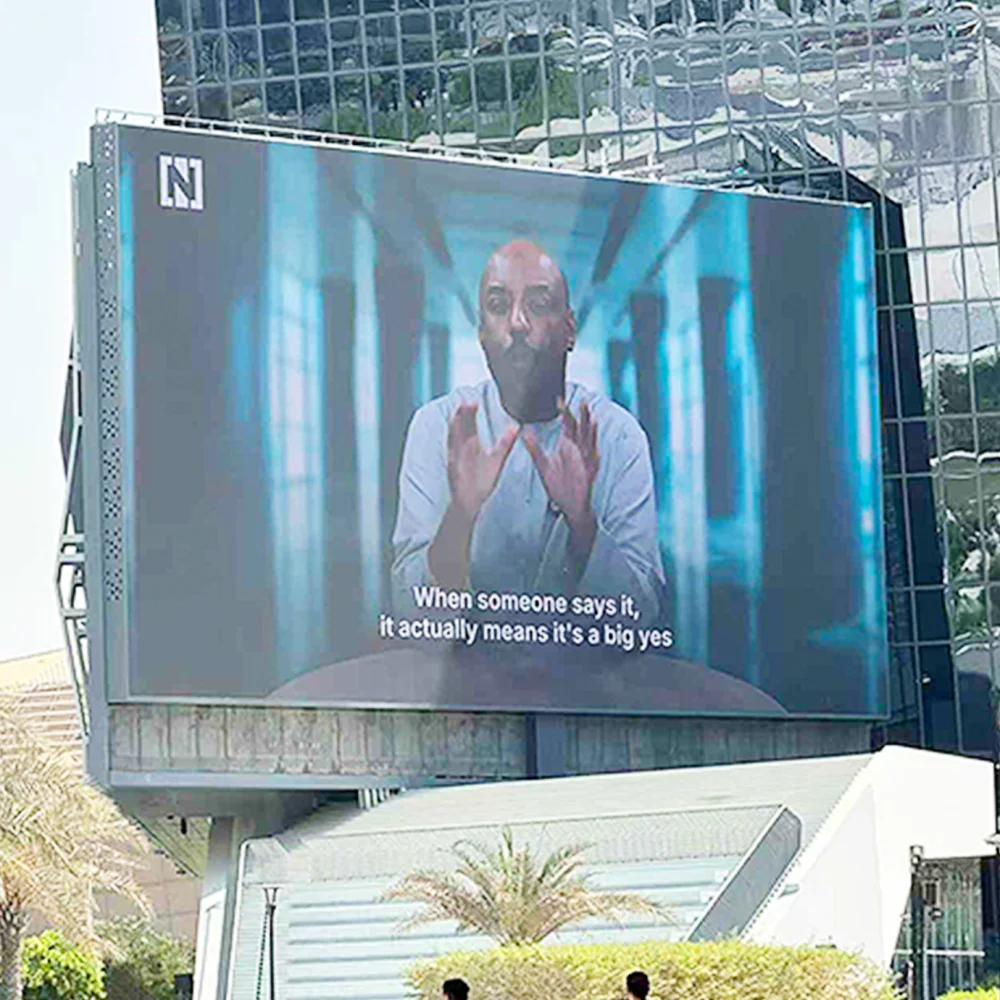

Façades
Bright architectural media for hotels and guest-facing spaces.
Commercial Centers
Large-format outdoor screens for retail districts and shopping destinations.
Cultural Venues
Accurate, immersive visuals for exhibitions and experience-led venues.

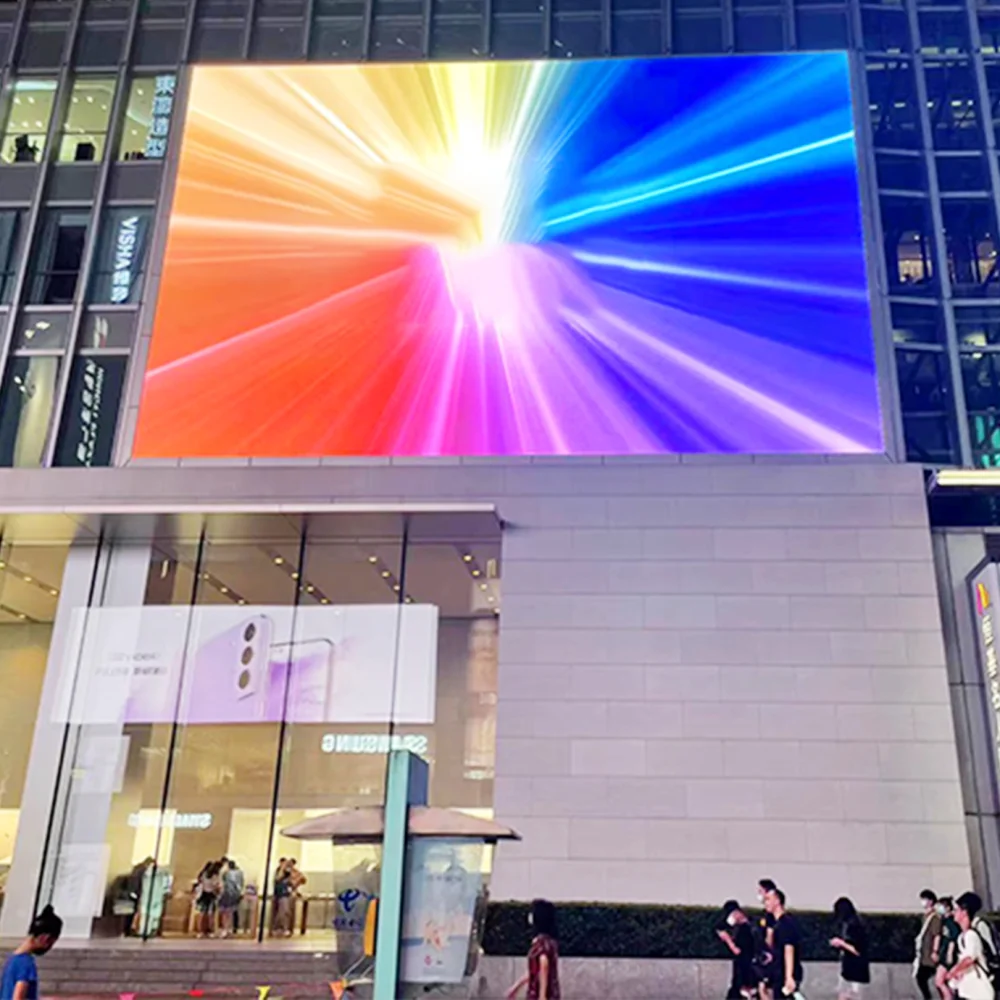

Flagship Stores
High-resolution brand content for premium retail façades.
Public Information Displays
Clear updates and announcements for high-traffic business and travel areas.
Airport
High-brightness media placements for passenger-facing airport environments.
Expo & Public Art
Large-scale display surfaces for events, public art and landmark projects.
Façades
Bright architectural media for hotels and guest-facing spaces.
Built to Reduce Operating Load
MVmk2 combines energy efficiency, faster setup and weather-ready protection to help operators manage large fixed displays with less pressure.
-
Lower Energy DemandMaintains strong brightness while helping reduce power use in outdoor media applications.
-
Faster SetupThe quick-install system allows a trained operator to mount one cabinet in about 60 seconds.
-
Weather-Ready DesignIP67-rated front and rear protection supports operation in exposed outdoor environments.

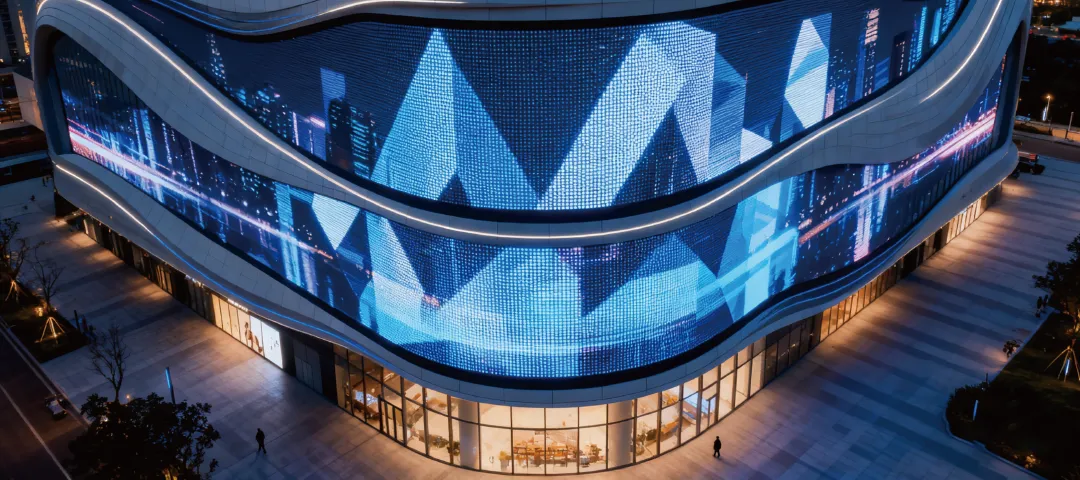

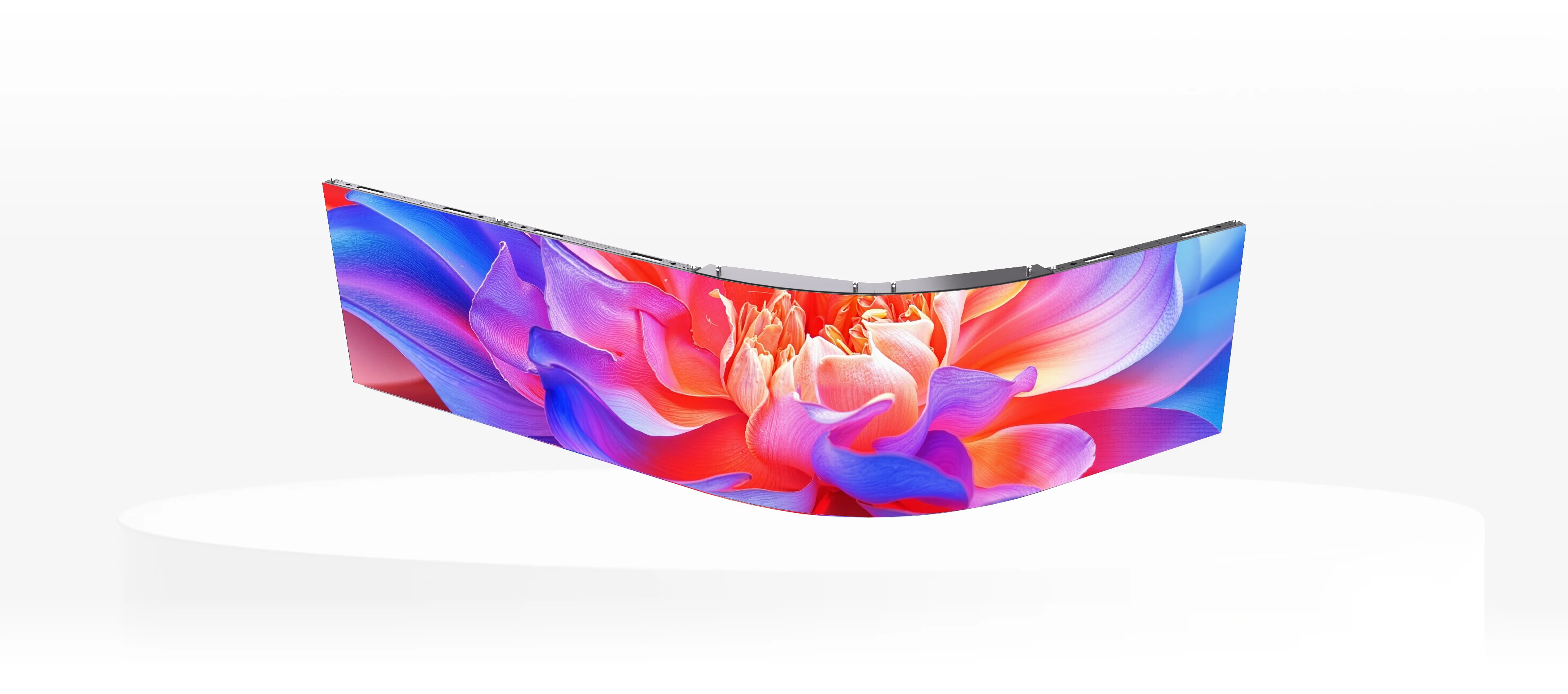

Creative Display Forms
MVmk2 gives designers more freedom to align LED displays with architecture, from flat façades to curved surfaces and corner structures.
-
Standard Flat DisplayP3.9, P6.9 and P10.4 options support fixed applications. -
Curved ArchitectureDual-chamfer cabinet design supports curved splicing around different building forms. -
Corner FormsPaired with MVedge, MVmk2 supports right-angle and rounded corner display designs. -
Custom RadiusProject-specific curvature is available to match complex architectural structures.

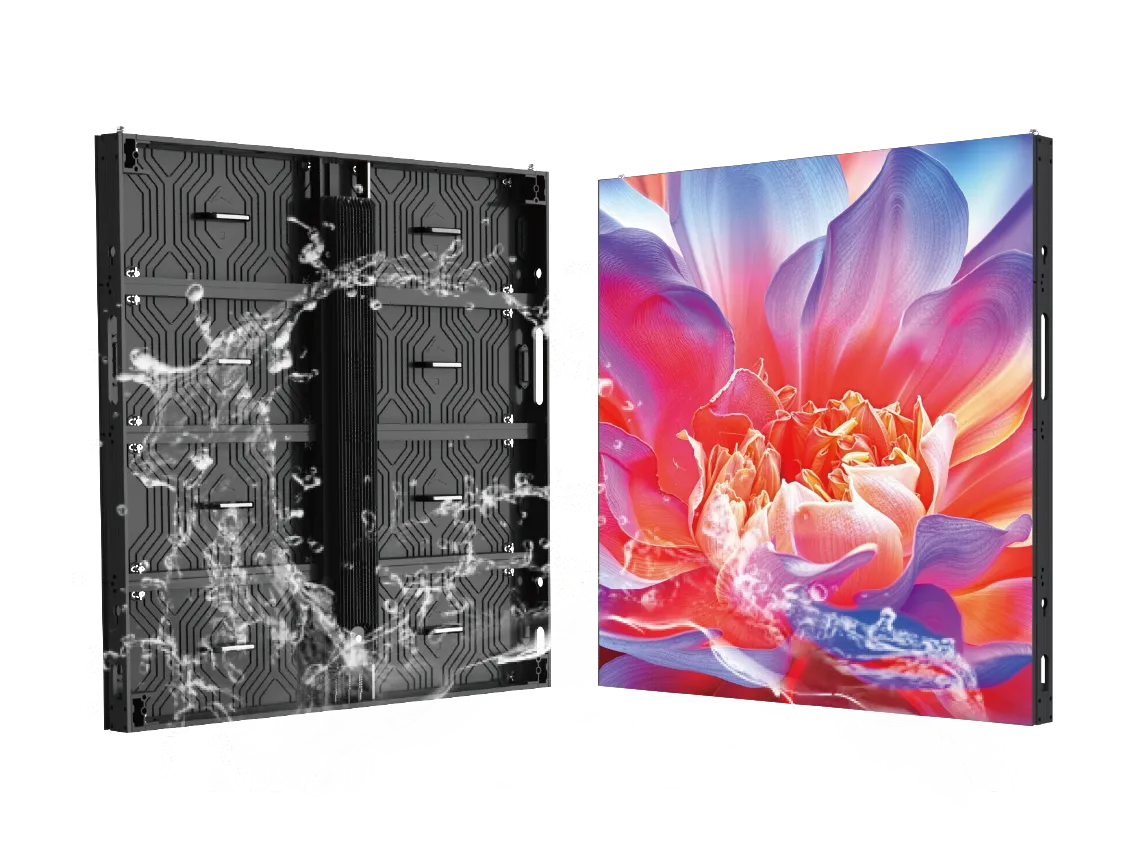

IP67 Protection for Exposed Sites
MVmk2 features IP67-rated front and rear protection to help resist dust, heavy rain and heat, supporting long-term outdoor operation with lower environment-related service risks.

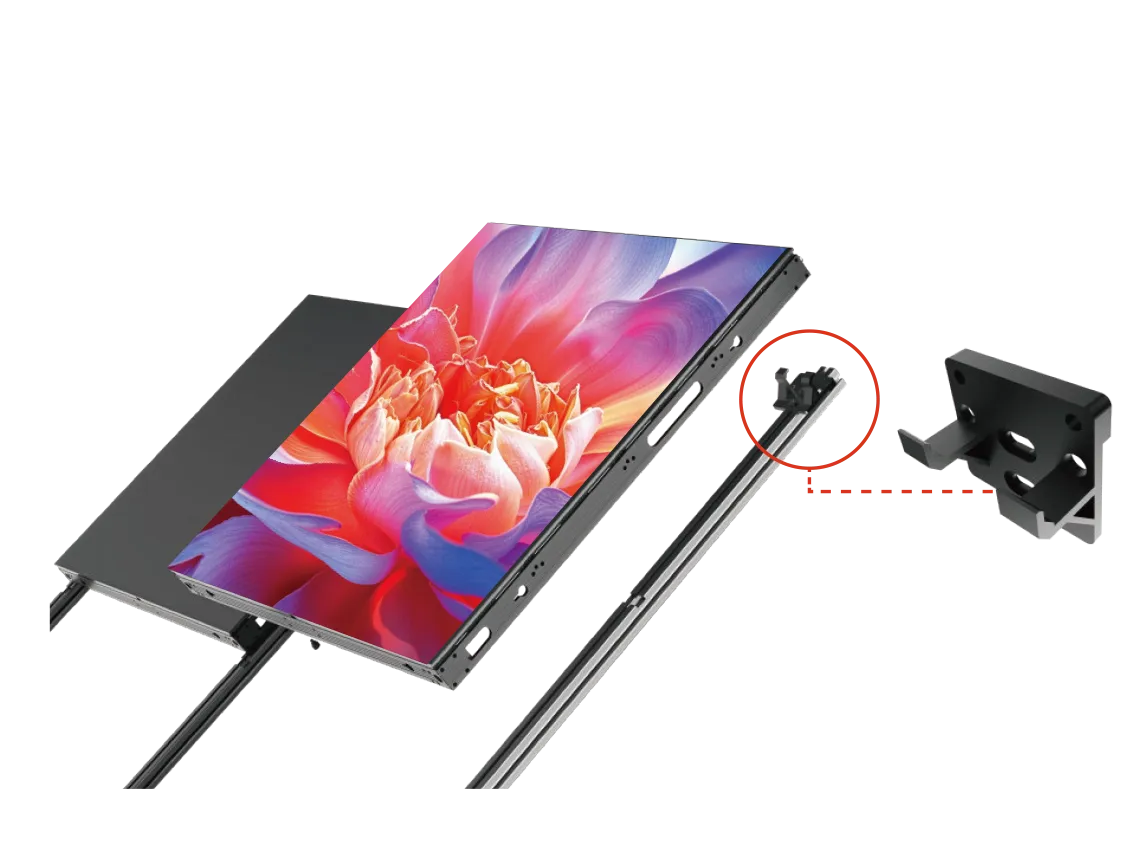

Optional Quick-Install System
MVmk2 can be equipped with a quick-install cabinet system for faster, more precise on-site assembly. Hook-based alignment and secure locking help simplify cabinet installation for large-format projects.

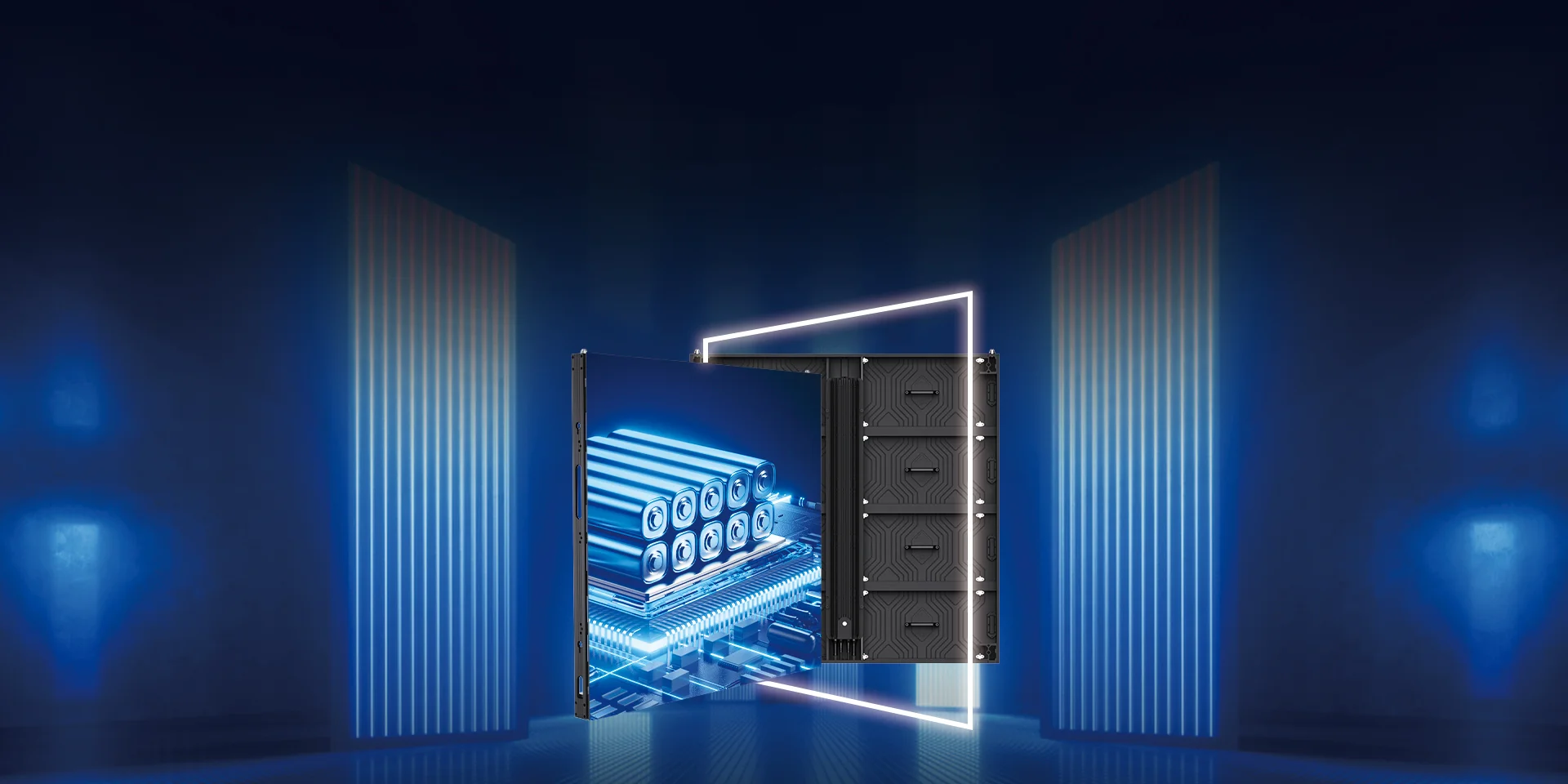

High Brightness, Lower Energy Use
MVmk2 increases brightness from 5,000 to 7,000 nits while reducing power consumption by about 12% compared with the earlier MV Series. Compared with conventional screens, it can lower energy use by about 20%, saving about 400 kWh per day on a 100 m² display under typical duty cycles.
Engineered for Long-Term Stability
MVmk2 uses a reinforced aluminum structure, all-metal thermal design and high-flatness modules to support reliable performance in demanding fixed installations.

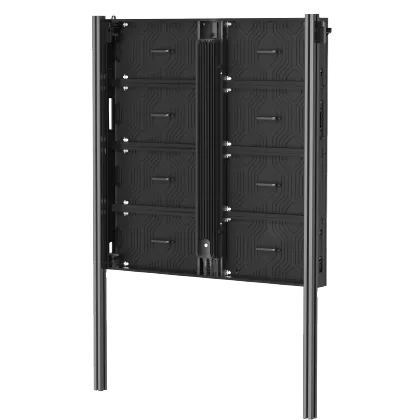

Rigid Aluminum H-Frame
A dual-layer aluminum H-frame increases structural strength by up to 2× and helps resist lateral deformation.
All-Metal Thermal Design
An all-metal central unit with 3× the heat-dissipation area improves thermal management, helping reduce power-supply temperature by 10°C+ and receiving-card temperature by up to 30°C.

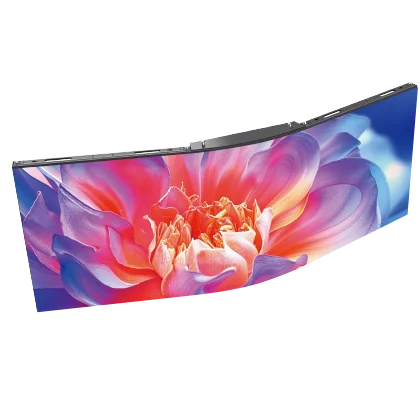

Flat and Stable Surface
Module flatness of ≤0.2 mm helps maintain clean seams and consistent image presentation.

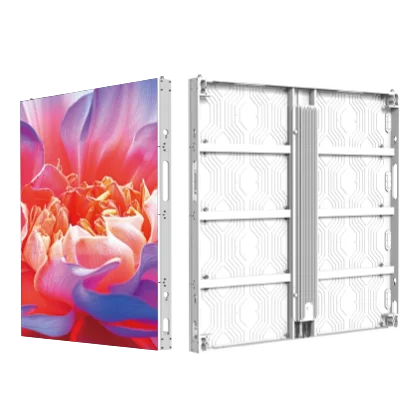

Optional White Cabinet
An optional white cabinet version helps MVmk2 blend into light-tone interiors and design-led environments such as retail stores, galleries and hospitality spaces.
Rigid Aluminum H-Frame
A dual-layer aluminum H-frame increases structural strength by up to 2× and helps resist lateral deformation.
All-Metal Thermal Design
An all-metal central unit with 3× the heat-dissipation area improves thermal management, helping reduce power-supply temperature by 10°C+ and receiving-card temperature by up to 30°C.
Flat and Stable Surface
Module flatness of ≤0.2 mm helps maintain clean seams and consistent image presentation.
Optional White Cabinet
An optional white cabinet version helps MVmk2 blend into light-tone interiors and design-led environments such as retail stores, galleries and hospitality spaces.
Flexible Cabinet Sizes, Fast Maintenance
MVmk2 offers flexible cabinet sizing and quick service access, helping simplify project layout, spare parts management and on-site maintenance.
-

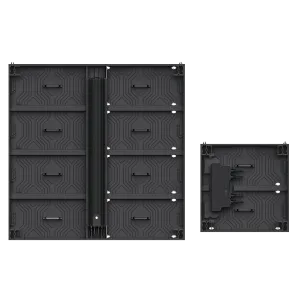

Flexible Cabinet Sizes
Available in 1000 × 1000 mm and 500 × 500 mm cabinet sizes, with shared modules to simplify spare parts management.
-

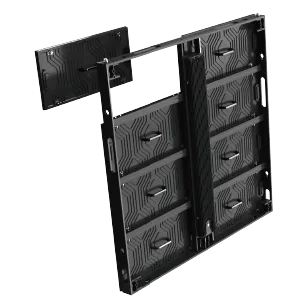

Fast Front & Rear Maintenance
Front and rear service access supports different installation conditions, while the Y-type quick-lock design allows one module to be released in about 10 seconds.

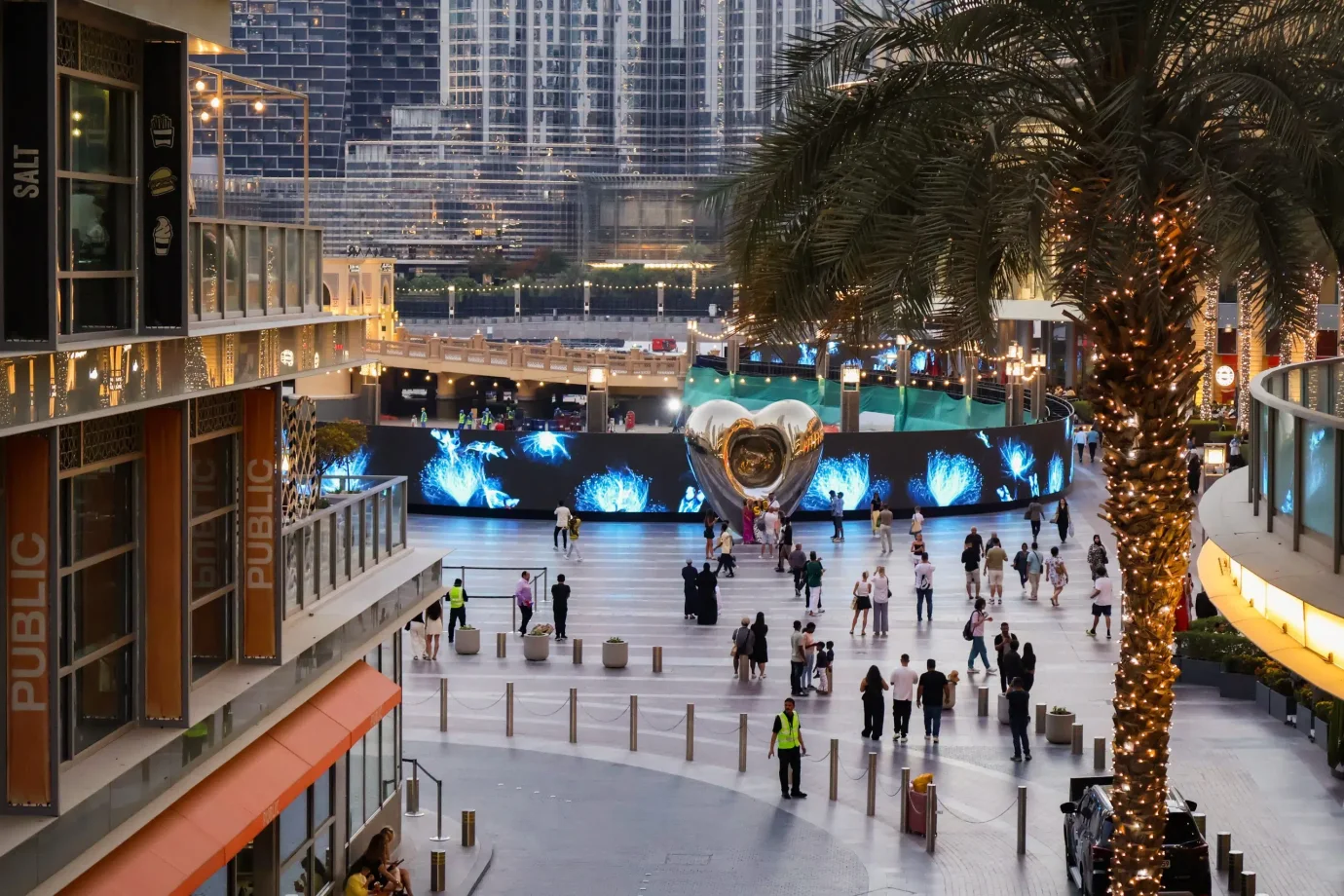

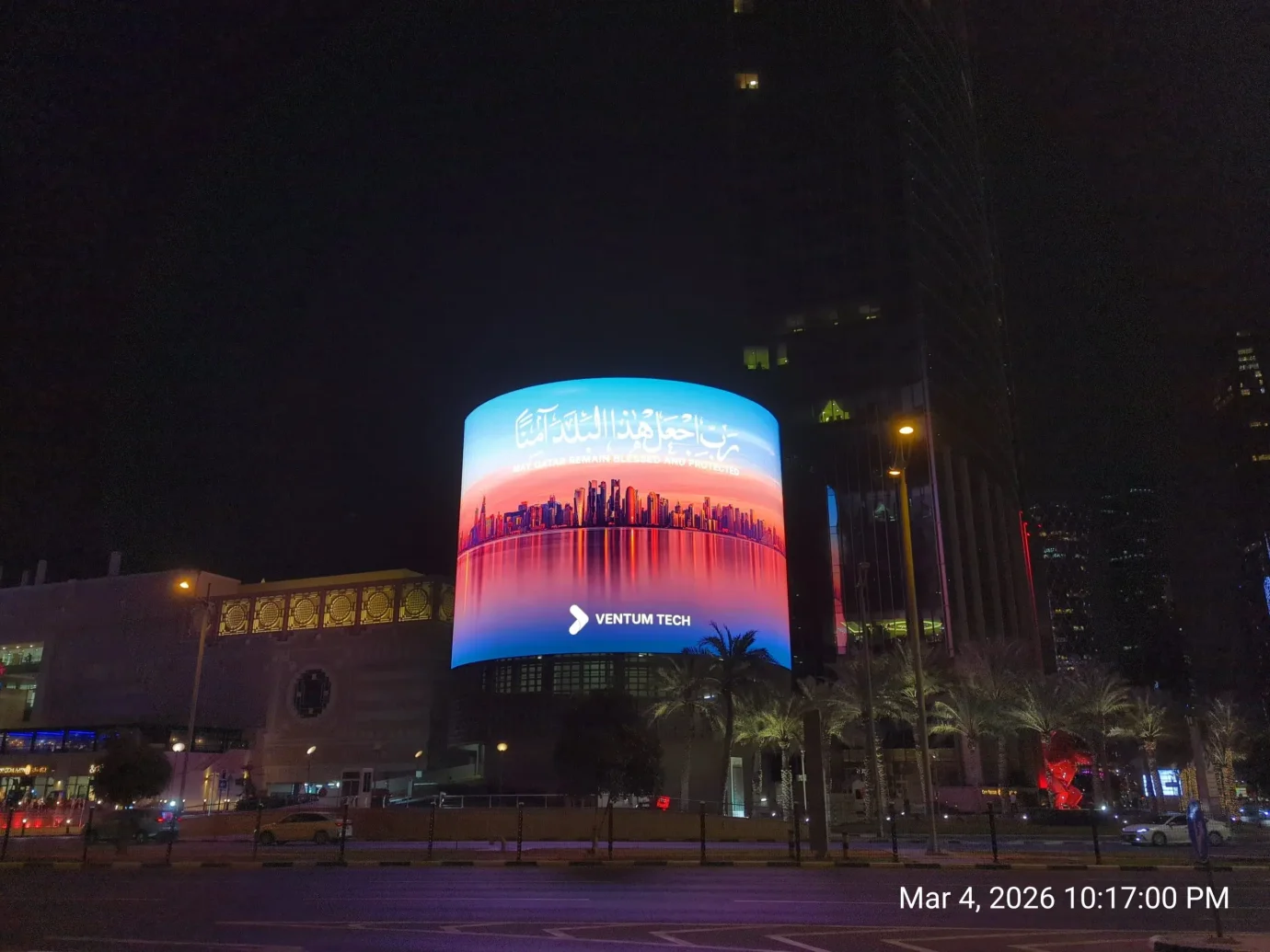

MVmk2 · Explore More Case Studies
